CK07 Polymer Drag Chain

CK10 F Series

Technical Data

Material:
PA6 + 30% Fibre Glass

Speed:
8 m/sec

Temperature:
-30°C to +130°C

Application Areas

Gantry Robot
Machining Center
Textile & Welding Machines
Woodwork & Fabric Machines

Image Representation

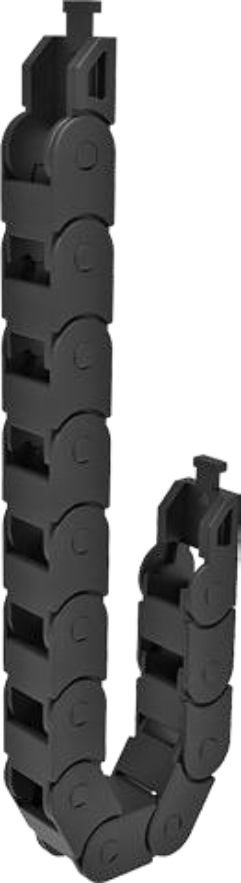

Chain Example

Formula References

L — Calculation of the chain length
HM — Travel Distance
Y — Mounting Height
X — Radius Length
H — Pitch

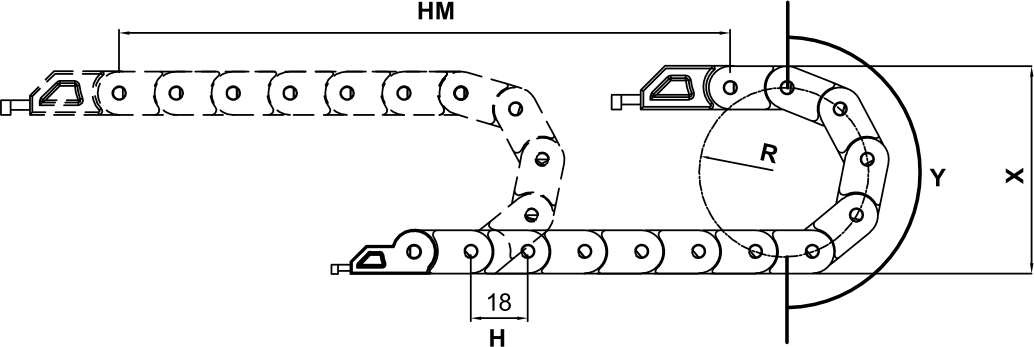

Chain Formula Diagram

Fixed Frame

CK10

Inner height

A

Open series

007

Inner width

R018

Bending radius

CK07 Series Diagram

L = HM / 2 + Y

X = R × 2 + C

Y = R × π

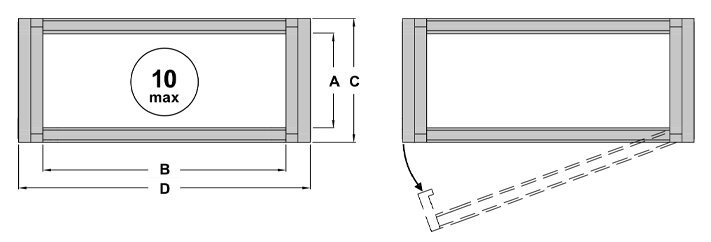

MODEL	A Inner Height (mm)	B Inner Width (mm)	C Outer Height (mm)	D Outer Width (mm)	R Bending Radius	W Weight Kg/Mt
CK10 F 010 R018	10	10	14	16	18	0.123
CK10 F 020 R018		20		26		0.154
CK10 F 020 R018		30		36		-

Bending Radius

	18
H(mm)	18
X(mm)	50
Y(mm)	57

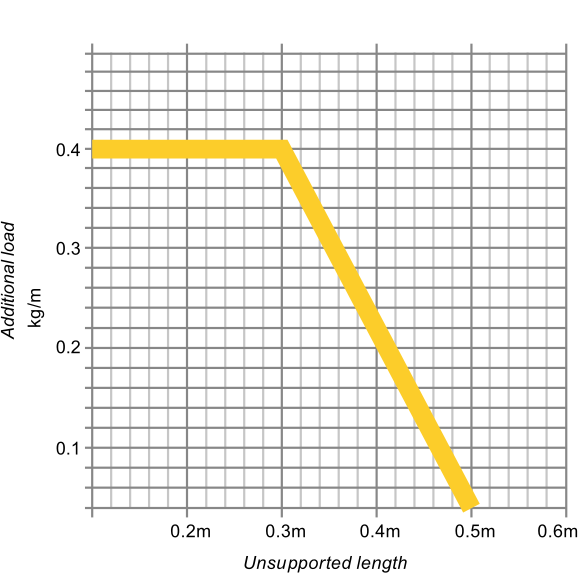

Load Diagram

Load Diagram

End Connector Assembly

Connector 1
