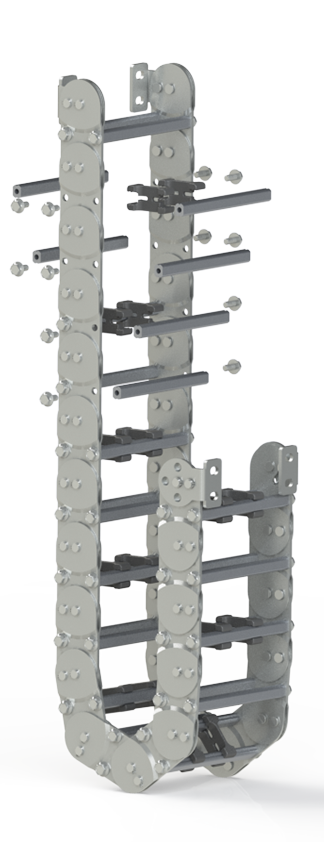

CS22 A/B

Inner Height: 22mm

Outer Height: 40mm

Inner Width: 50mm - 400mm

Outer Width: 65mm - 415mm

Radius: 50mm - 150mm

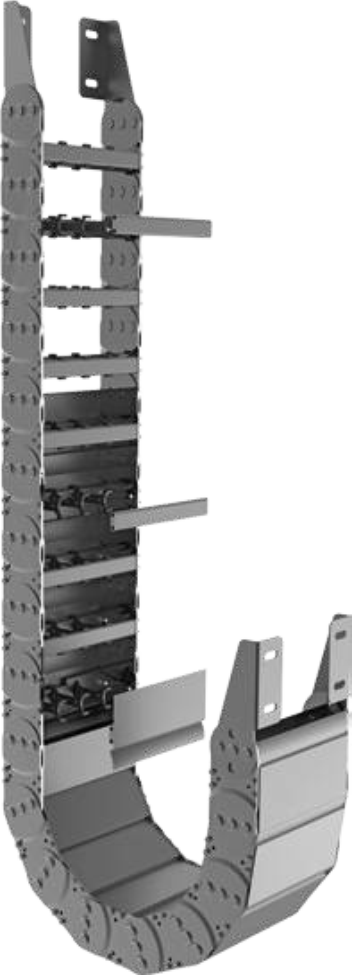

CS30 A/B/K

Inner Height: 30mm

Outer Height: 50mm

Inner Width: 50mm - 500mm

Outer Width: 65mm - 516mm

Radius: 75mm - 150mm

CS45 A/B/K

Inner Height: 45mm

Outer Height: 63mm

Inner Width: 80mm - 600mm

Outer Width: 102mm - 622mm

Radius: 75mm - 250mm

CS60 A/B/K

Inner Height: 60mm

Outer Height: 78mm

Inner Width: 80mm - 600mm

Outer Width: 102mm - 622mm

Radius: 100mm - 400mm

CS75 A/B/K

Inner Height: 75mm

Outer Height: 97mm

Inner Width: 100mm - 800mm

Outer Width: 132mm - 832mm

Radius: 150mm - 450mm

CS110 A/B/K

Inner Height: 110mm

Outer Height: 145mm

Inner Width: 200mm - 1000mm

Outer Width: 232mm - 1032mm

Radius: 250mm - 1000mm

CS180 A/B/K

Inner Height: 180mm

Outer Height: 220mm

Inner Width: 250mm - 1500mm

Outer Width: 295mm - 1545mm

Radius: 400mm - 1400mm

CS250 A/B

Inner Height: 250mm

Outer Height: 290mm

Inner Width: 295mm - 1500mm

Outer Width: 232mm - 1545mm

Radius: 500mm - 1400mm
