CK07 Polymer Drag Chain

CK15 A Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

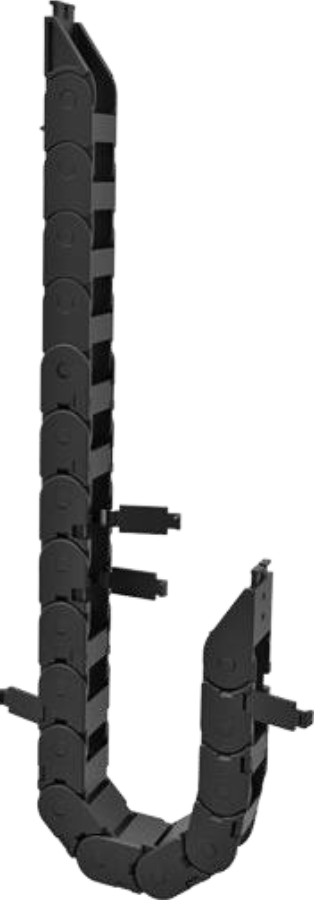

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

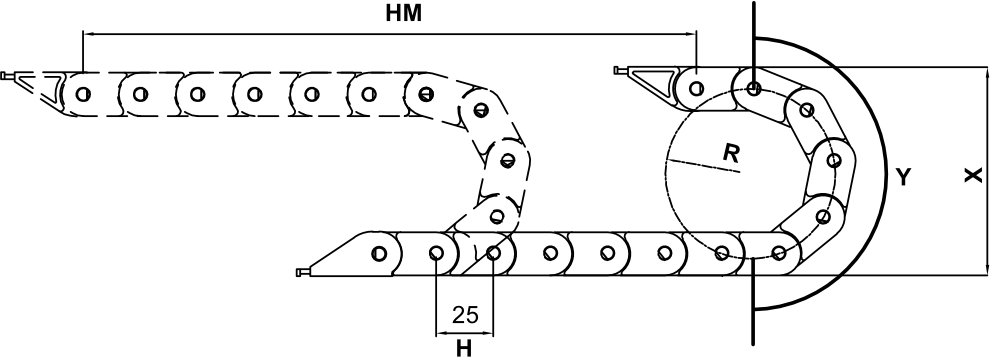

Chain Formula Diagram

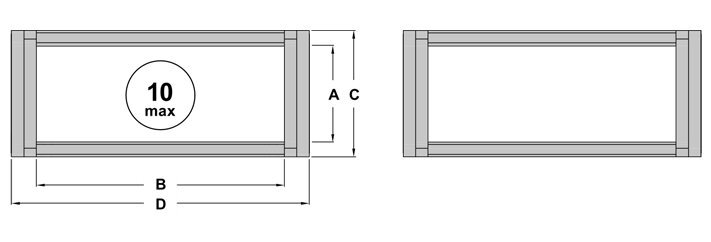

Openable From Inside

CK15
Inner height
A
Open series
015
Inner width
R025
Bending radius
CK15 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CK15 A 015 R... 15 15 20 23 0.266
CK15 A 020 R... 20 28 0.282
CK15 A 030 R... 30 38 0.310
CK15 A 040 R... 40 48 0.336

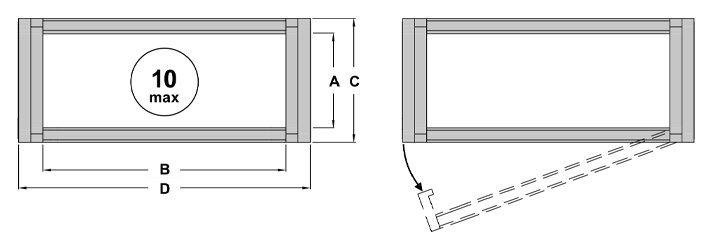

Fixed Frame

CK15
Inner height
F
Open series
015
Inner width
R025
Bending radius
CK15 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CK15 F 015 R... 15 15 20 25 0.266
CK15 F 020 R... 20 28 0.282
CK15 F 030 R... 30 38 0.310
CK15 F 040 R... 40 48 0.336

Technical Resources

CK15 Catalogue

Technical dimensions, specifications and installation details.

View PDF Download

Bending Radius

25 35
H(mm) 25 25
X(mm) 70 90
Y(mm) 78.5 110

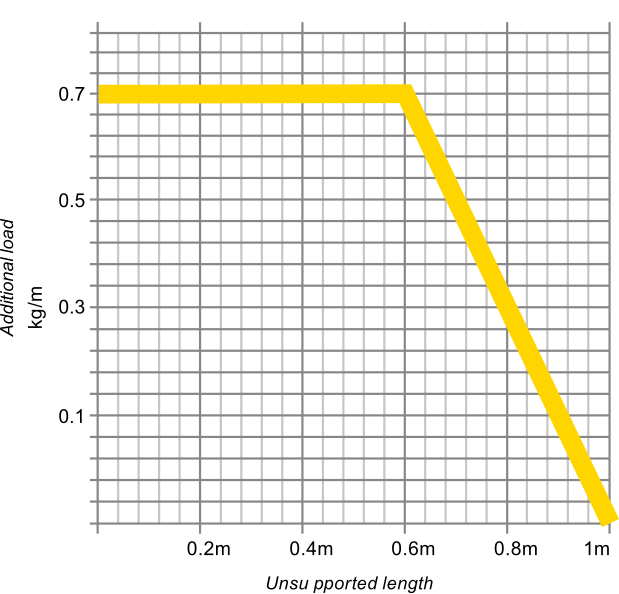

Load Diagram

Load Diagram

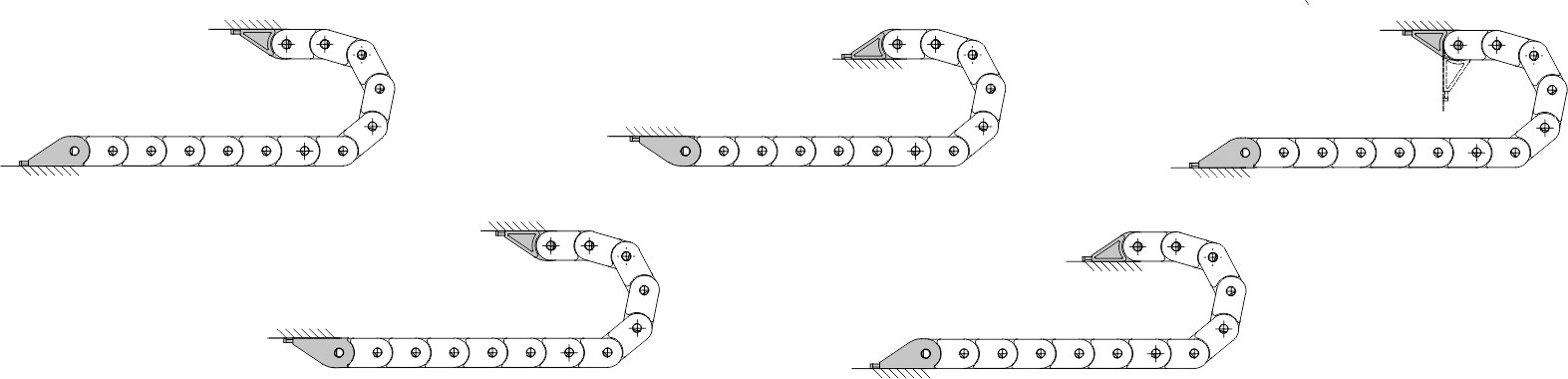

End Connector Assembly

Connector 1
