CK07 Polymer Drag Chain

CK20 F/Y Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

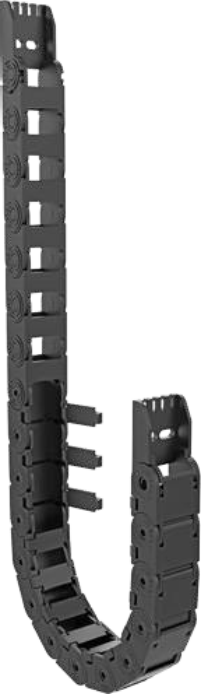

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

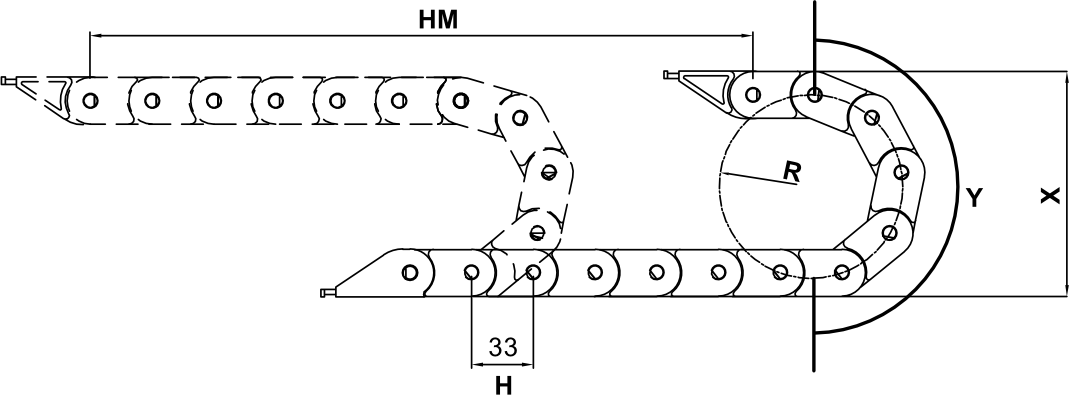

Chain Formula Diagram

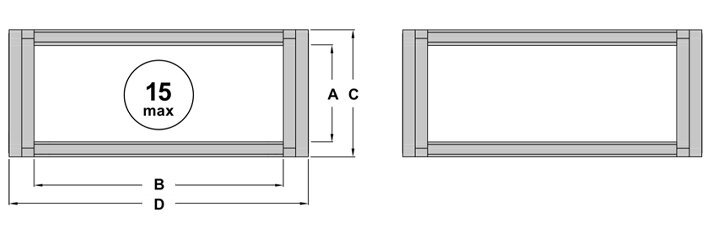

Fixed Frame

CK20
Inner height
F
Open series
025
Inner width
R040
Bending radius
CK20 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK20 F 025 R040 20 25 26 37 40 0.425

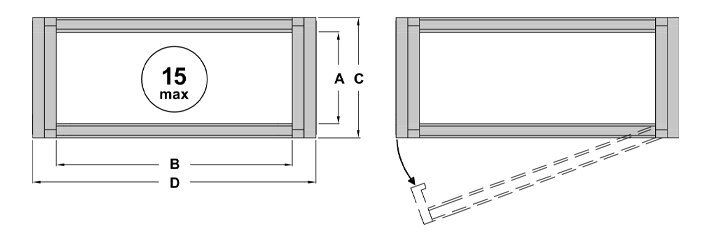

Semi-Closed

CK20
Inner height
Y
Half Covered
075
Inner width
R040
Bending radius
CK20 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK20 Y 025 R040 20 25 26 37 40 0.470
CK20 Y 040 R040 40 52 0.543
CK20 Y 050 R040 50 62 0.600
CK20 Y 060 R040 60 72 0.634

Technical Resources

CK20 Catalogue

Technical dimensions, specifications and installation details.

View PDF Download

Bending Radius

40
H(mm) 33
X(mm) 106
Y(mm) 126

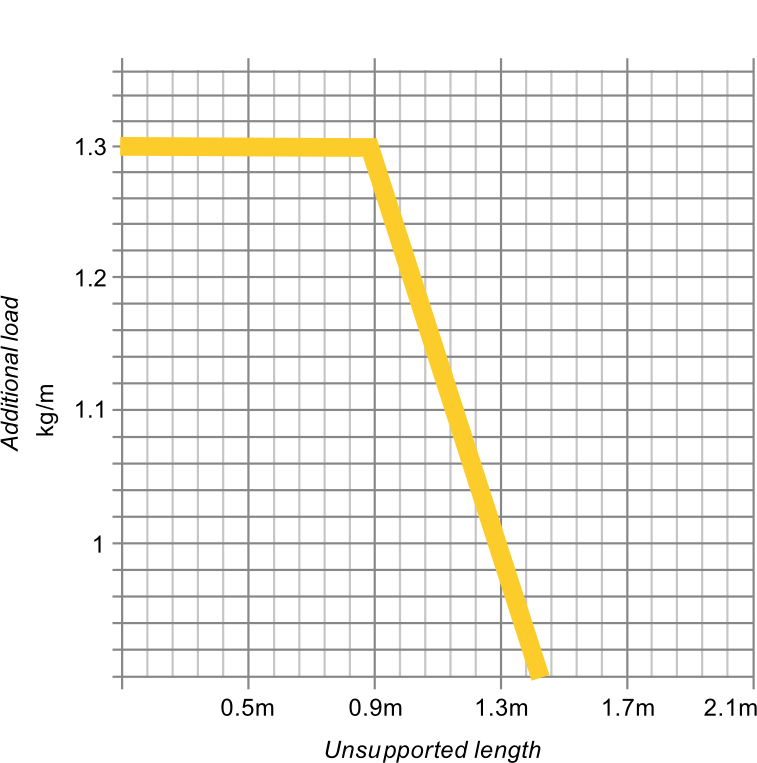

Load Diagram

Load Diagram

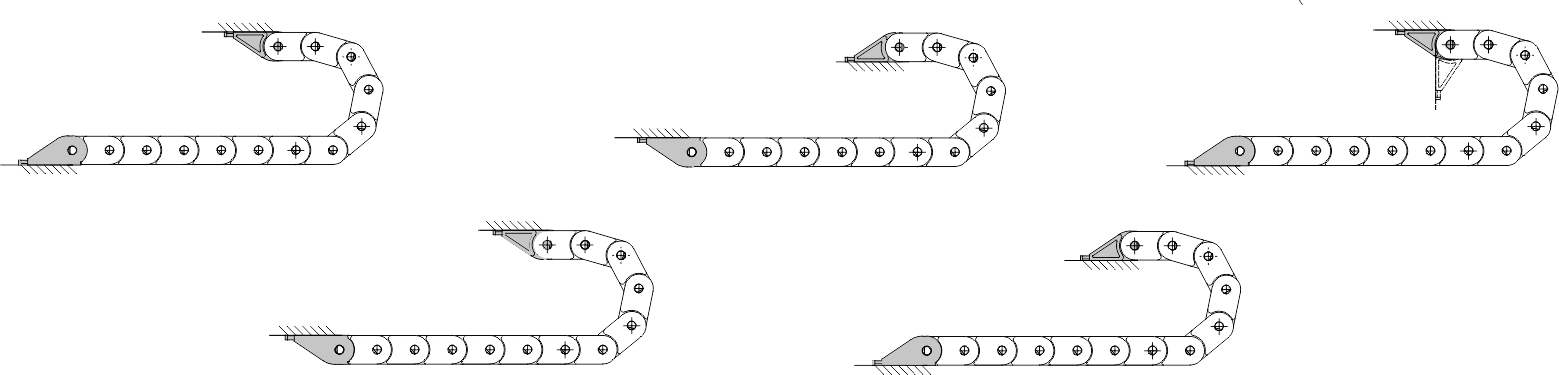

End Connector Assembly

Connector 1
