CK07 Polymer Drag Chain

CK25 Series

Technical Data

Material:
PA6 + 30% Fibre Glass

Speed:
8 m/sec

Temperature:
-30°C to +130°C

Application Areas

Gantry Robot
Machining Center
Textile & Welding Machines
Woodwork & Fabric Machines

Image Representation

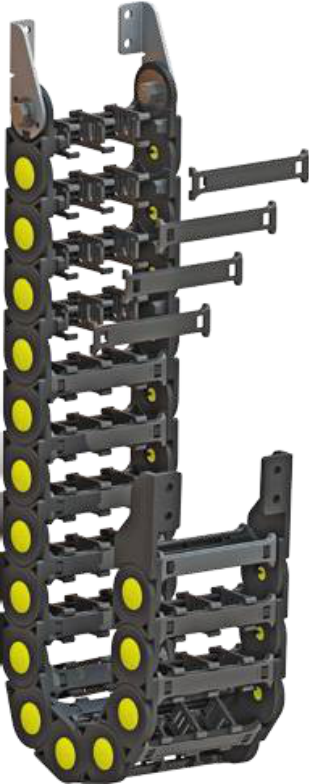

Chain Example

Formula References

L — Calculation of the chain length
HM — Travel Distance
Y — Mounting Height
X — Radius Length
H — Pitch

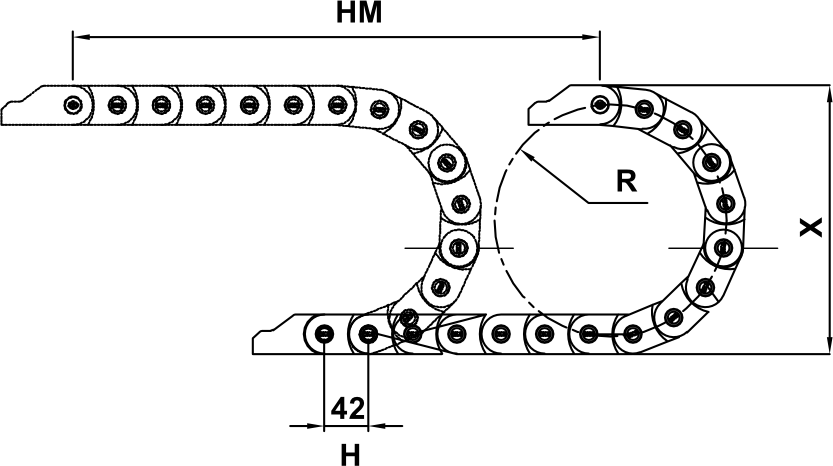

Chain Formula Diagram

Fixed Frame

CK25

Inner height

A

Open series

040

Inner width

R075

Bending radius

CK25 Series Diagram

L = HM / 2 + Y

X = R × 2 + C

Y = R × π

MODEL	A Inner Height (mm)	B Inner Width (mm)	C Outer Height (mm)	D Outer Width (mm)	W Weight Kg/Mt
CK25 A 040 R...	25	40	42	62	1,26
CK25 A 050 R...		50		72	1,36
CK25 A 060 R...		60		82	1,46
CK25 A 080 R...		80		102	1,65
CK25 A 100 R...		100		122	1,86

Bending Radius

	40	75	100	125
H(mm)	42
X(mm)	112	192	242	292
Y(mm)	126	236	314	393

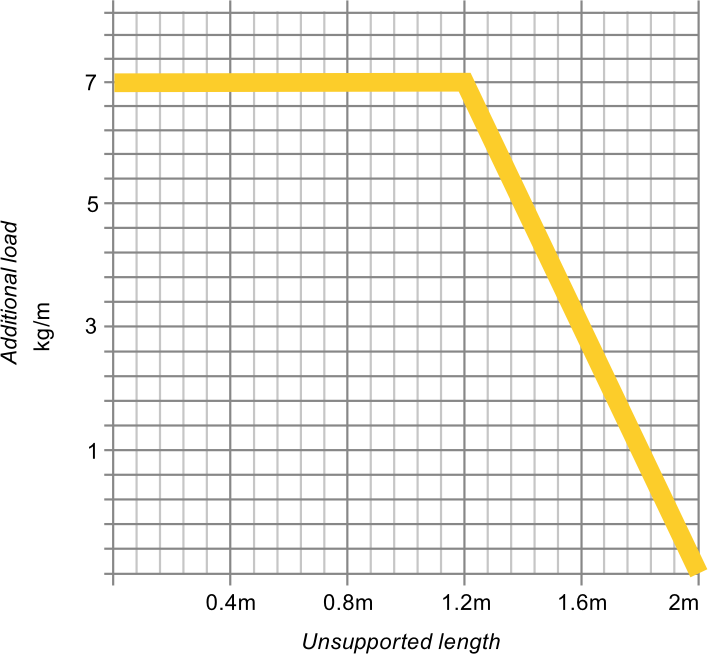

Load Diagram

Load Diagram

End Connector Assembly

Polymer End Bracket Assembly

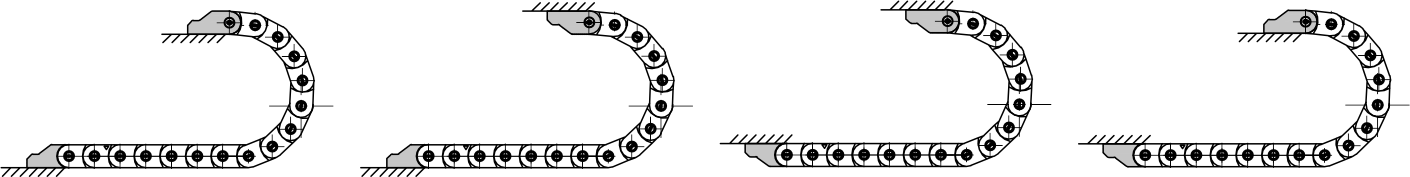

Connector 1

Steel End Bracket Assembly

Connector 2
