CK07 Polymer Drag Chain

CK28 Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

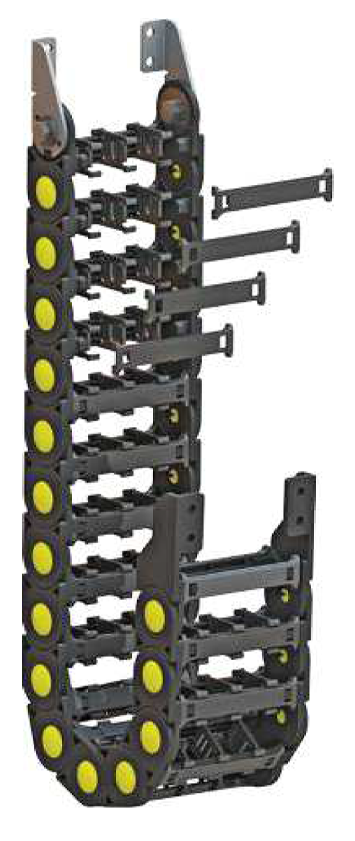

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

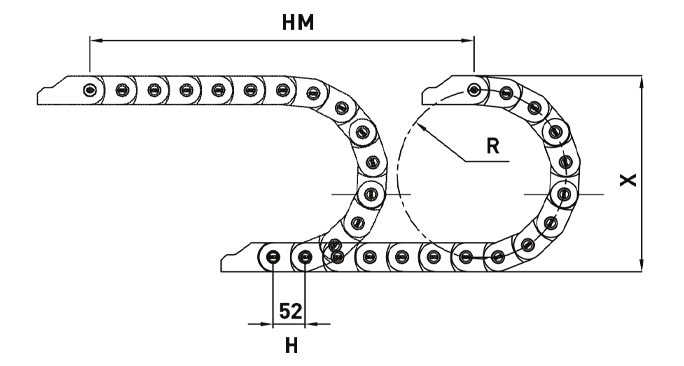

Chain Formula Diagram

Fixed Frame

CK28
Inner height
A
Open series
050
Inner width
R075
Bending radius
CK28 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK28 A 040 R... 28 40 48 60 40, 75, 100, 125, 150,200 1.044
CK28 A 050 R... 50 70 1.092
CK28 A 060 R... 60 80 1.140
CK28 A 080 R... 80 100 1.286
CK28 A 100 R... 100 120 1.332

Bending Radius

40 75 100 125
H(mm) 45
X(mm) 125 195 245 295
Y(mm) 126 236 314 393

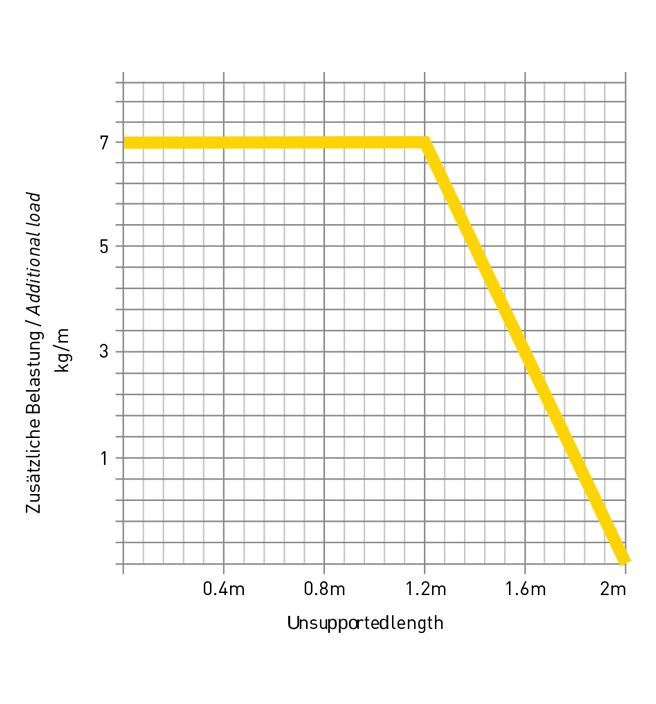

Load Diagram

Load Diagram

End Connector Assembly

Polymer End Bracket Assembly

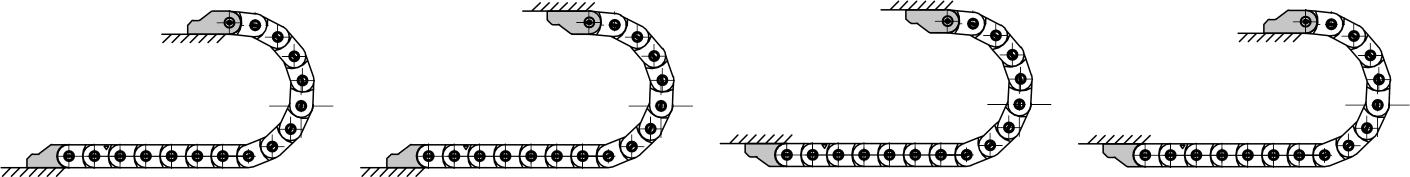

Connector 1

Steel End Bracket Assembly

Connector 2
