CK07 Polymer Drag Chain

CK42 A/K/Y Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

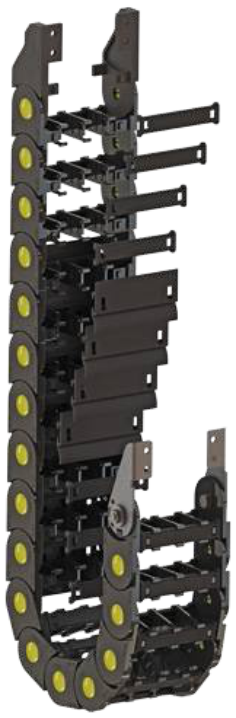

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

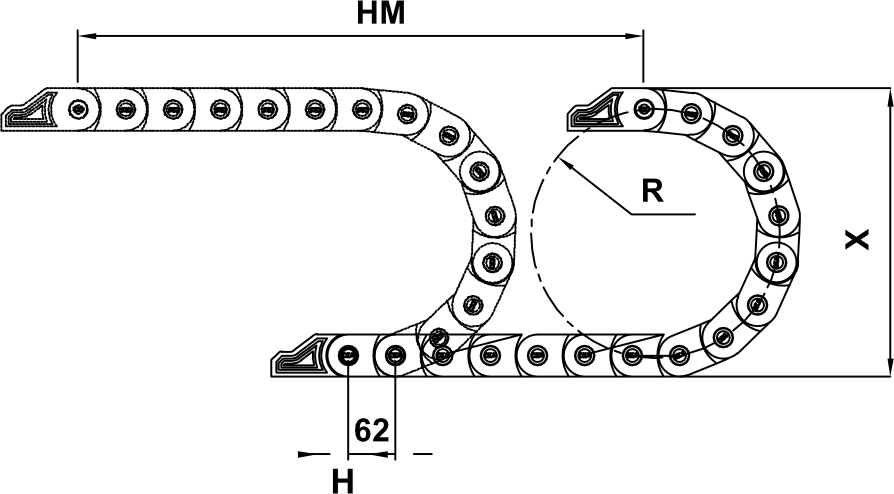

Chain Formula Diagram

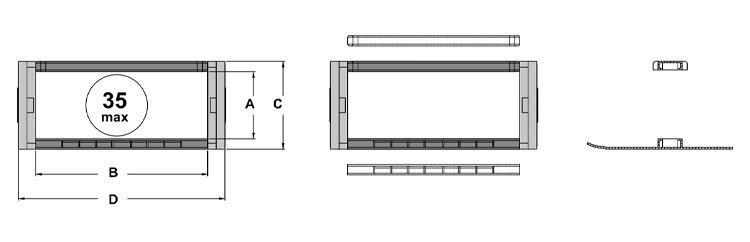

Openable From Inside

CK42
Inner height
A
Open series
050
Inner width
R075
Bending radius
CK42 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK42 A 040 R... 42 40 58 67 75,100,150,250 1.578
CK42 A 050 R... 50 77 1.610
CK42 A 060 R... 60 87 1.642
CK42 A 080 R... 80 107 1.706
CK42 A 100 R... 100 127 1.770
CK42 A 120 R... 120 147 1.834
CK42 A 125 R... 125 152 1.866
CK42 A 175 R... 175 202 2.026

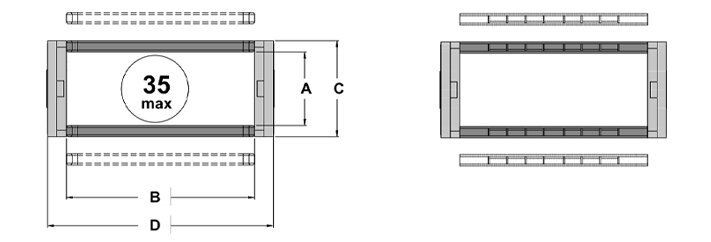

Openable From Inside and Outside

CK42
Inner height
K
Open series
080
Inner width
R100
Bending radius
CK42 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK42 K 050 R... 42 50 58 77 100,150,250 1.866
CK42 K 080 R... 80 107 2.122
CK42 K 100 R... 100 127 2.298
CK42 K 125 R... 125 152 2.490

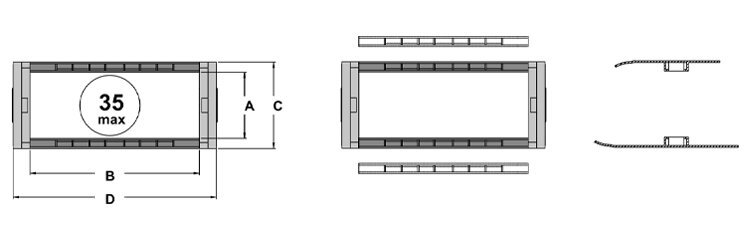

Semi-Closed

CK42
Inner height
Y
Open series
080
Inner width
R100
Bending radius
CK42 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK42 Y 050 R... 42 50 58 77 100,150,250 1.738
CK42 Y 080 R... 80 107 1.930
CK42 Y 100 R... 100 127 2.058
CK42 Y 125 R... 125 152 2.022

Bending Radius

75 100 150
H(mm) 62
X(mm) 208 258 358
Y(mm) 236 314 471

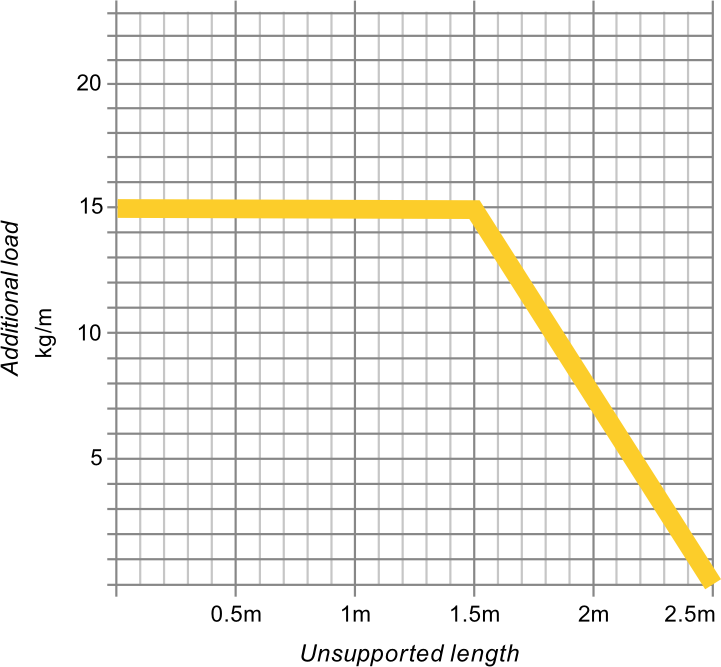

Load Diagram

Load Diagram

End Connector Assembly

Polymer End Bracket Assembly

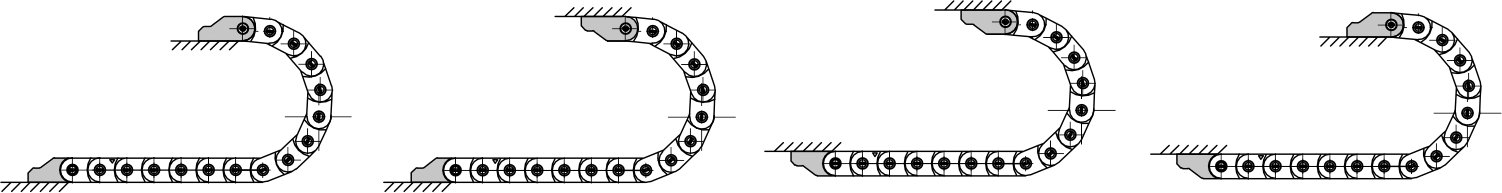

Connector 1

Steel End Bracket Assembly

Connector 2
