CK07 Polymer Drag Chain

CK60 Roller Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch
Chain Formula Diagram

Openable From Inside

CK60
Inner height
A
Open series
080
Inner width
R100
Bending radius
CK60 Roller Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK60 A 080 R... 60 80 82 132 200 3.120
CK60 A 100 R... 100 152 3.252
CK60 A 120 R... 120 172 3.384
CK60 A 150 R... 150 172 3.494
CK60 A 160 R... 160 212 3.582
CK60 A 180 R... 180 232 3.670
CK60 A 200 R... 200 252 3.846

Openable From Inside

CK60
Inner height
AL
Open series
500
Inner width
R300
Bending radius
CK60 Roller Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK60 AL 080 R... 60 80 82 132 200 3.120
CK60 AL 100 R... 100 152 3.252
CK60 AL 120 R... 120 172 3.384
CK60 AL 150 R... 150 172 3.494
CK60 AL 160 R... 160 212 3.582
CK60 AL 180 R... 180 232 3.670
CK60 AL 200 R... 200 252 3.846

Bending Radius

200
H(mm) 140
X(mm) 482
Y(mm) 628

Load Diagram

Load Diagram

End Connector Assembly

Polymer End Bracket Assembly

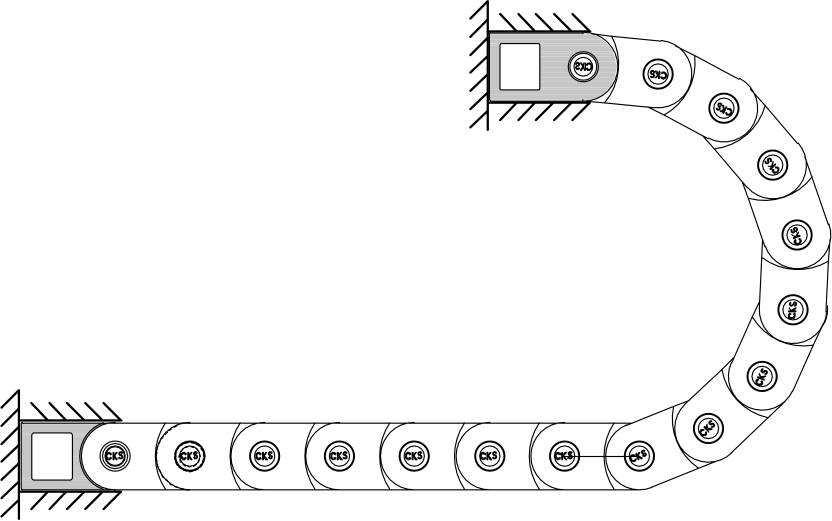

Connector 1

Steel End Bracket Assembly

Connector 2
