CK07 Polymer Drag Chain

CK80 A/AL/K/Y Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

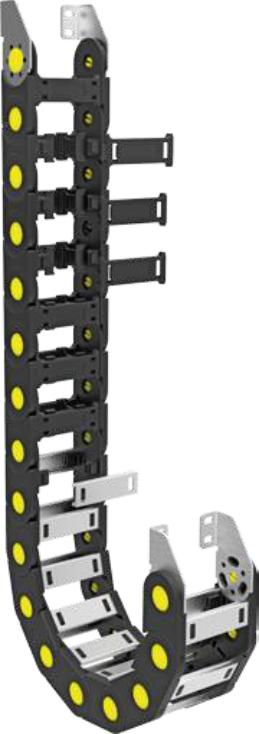

Chain Example

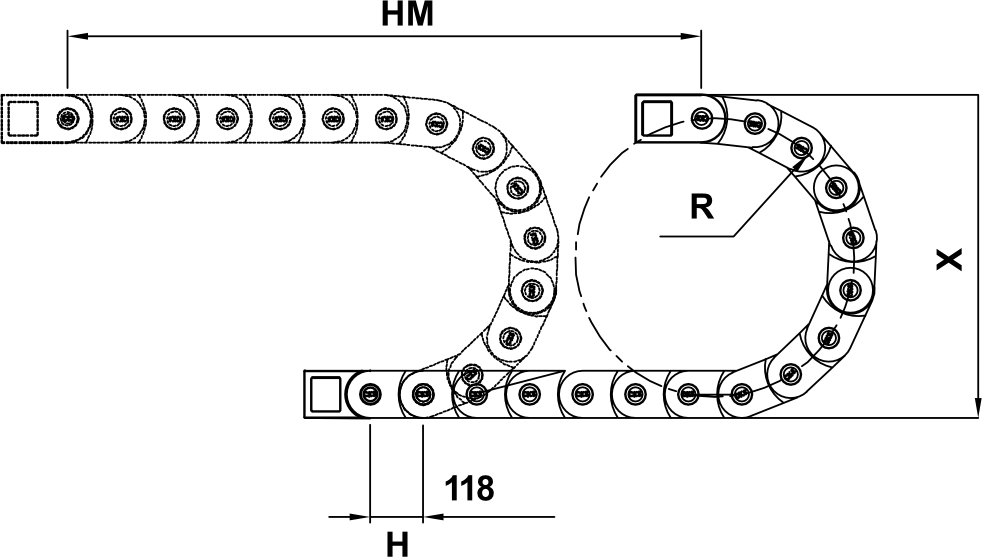

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch
Chain Formula Diagram

Openable From Inside

CK80
Inner height
A
Open series
200
Inner width
R200
Bending radius
CK80 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK80 A 080 R... 80 80 102 120 150,200,250,300 3.848
CK80 A 100 R... 100 140 3.592
CK80 A 120 R... 120 160 3.700
CK80 A 140 R... 140 180 3.790
CK80 A 160 R... 160 200 3.862
CK80 A 180 R... 180 220 3.934
CK80 A 200 R... 200 240 4.078

Openable From Inside and Outside

CK80
Inner height
AL
Open series
400
Inner width
R300
Bending radius
CK80 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 B
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 R
Bending Radius		 W
Weight Kg/Mt
CK80 AL 250 R... 80 250 102 290 150,200,250,300 4.258
CK80 AL 300 R... 300 340 4.474
CK80 AL 400 R... 400 440 5.006
CK80 AL 500 R... 500 540 5.258

Bending Radius

150 200 250 300
H(mm) 118
X(mm) 402 502 602 702
Y(mm) 471 628 785 942

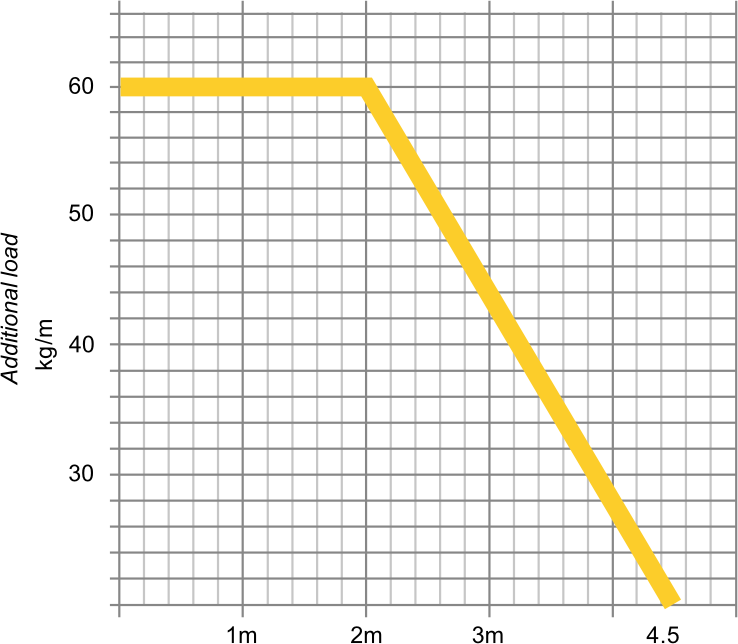

Load Diagram

Load Diagram

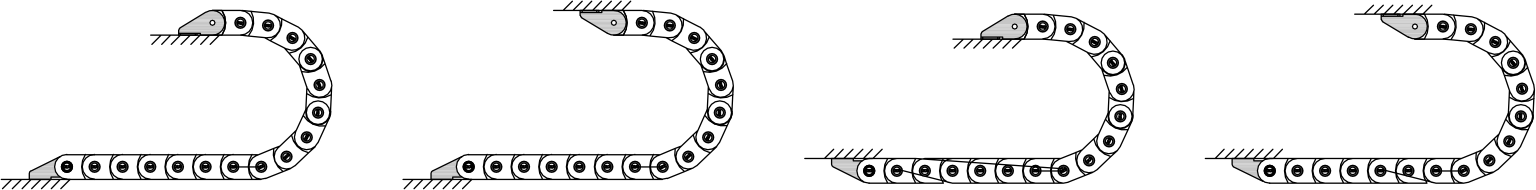

End Connector Assembly

Connector 1
