CS22 A / B Metal Drag Chain

CS22 A/B Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

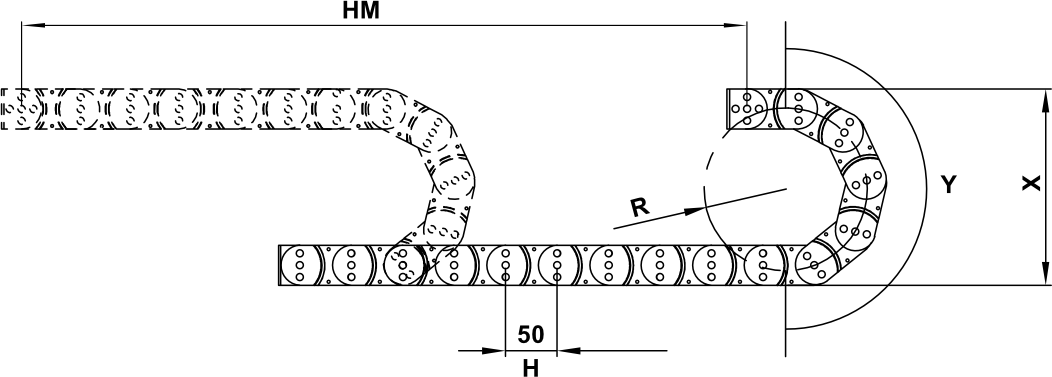

Chain Formula Diagram

Openable From Inside

CS22
Inner height
A
Open series
200
Inner width
R050
Bending radius

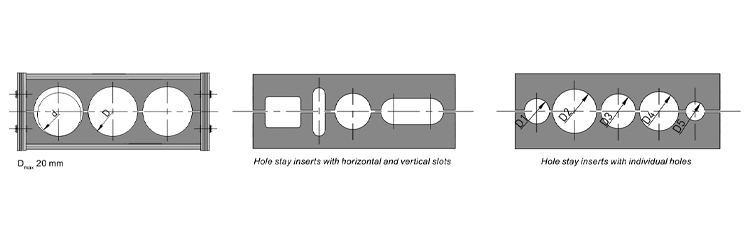

CS22 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π

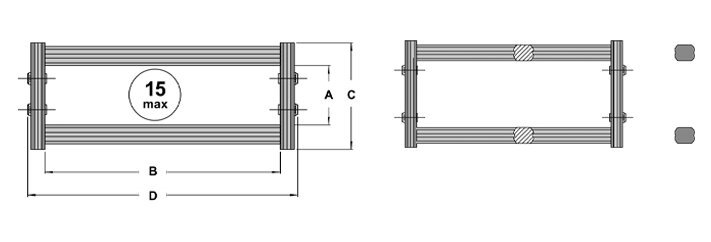

MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS22 A 22 50-400 40 65-415 50-150

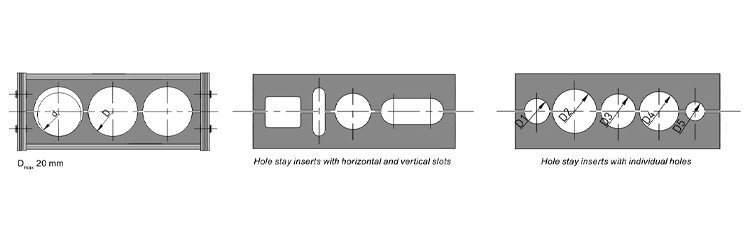

Aluminium Special Designed Series for your Cables and Hose holes

CS22
Inner height
B
Special designed series
200
Inner width
R050
Bending radius
CS22 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS22 B 22 50-400 40 65-415 50-150

Technical Resources

CS22 Steel Catalogue

Technical dimensions, specifications and installation details.

View PDF Download

Bending Radius

50 150
H(mm) 50
X(mm) 140 340
Y(mm) 157 471

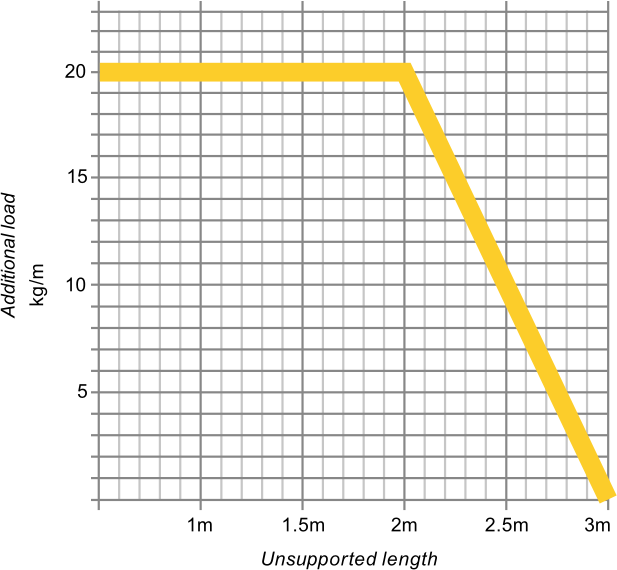

Load Diagram

Load Diagram

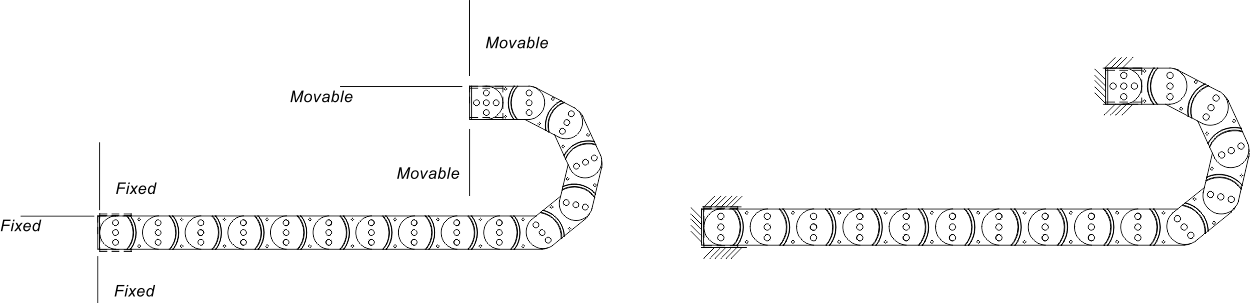

Steel End Connector Assembly

Connector 1
