CS60 A / B / K Metal Drag Chain

CS60 A/B/K Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

Chain Example

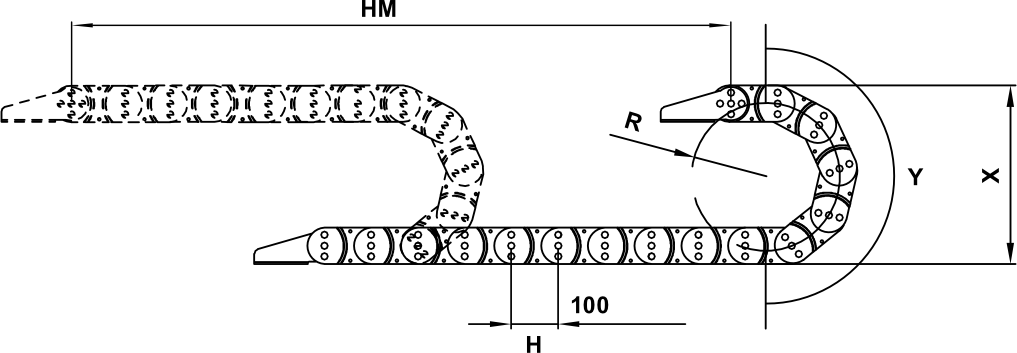

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch
Chain Formula Diagram

Openable From Inside

CS60
Inner height
A
Open series
200
Inner width
R150
Bending radius
CS60 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π

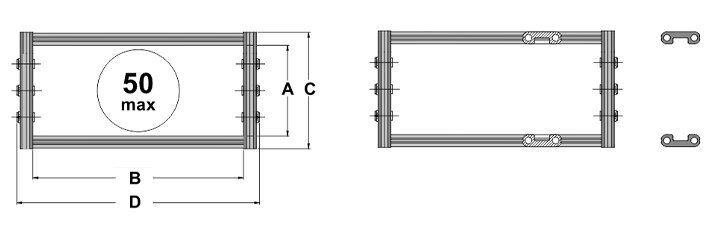

A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS60 A 60 80-600 78 102-622 100-400

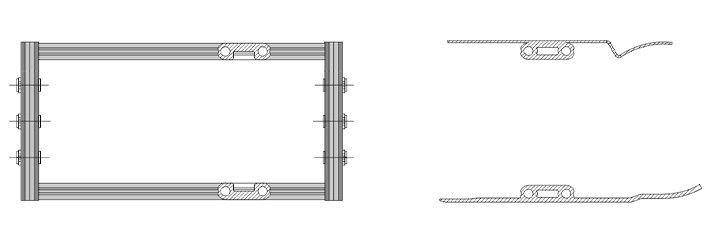

Aluminium Special Designed Series for your Cables and Hose holes

CS60
Inner height
B
Special designed series
200
Inner width
R150
Bending radius
CS60 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS60 B 60 80-600 78 102-622 100-400

Openable From Inside

CS60
Inner height
K
Closed series
200
Inner width
R200
Bending radius
CS60 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS60 K 60 80-600 78 102-622 100-400

Bending Radius

100 150 200 250 300 400
H(mm) 100
X(mm) 278 378 478 578 678 878
Y(mm) 314 471 628 785 942 1256

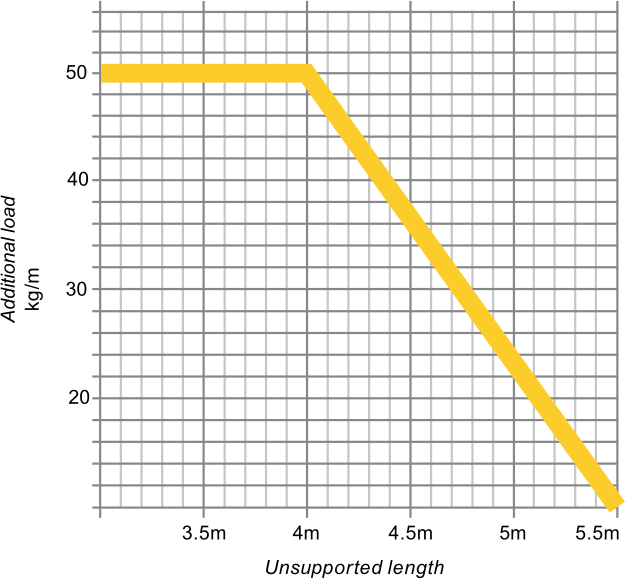

Load Diagram

Load Diagram

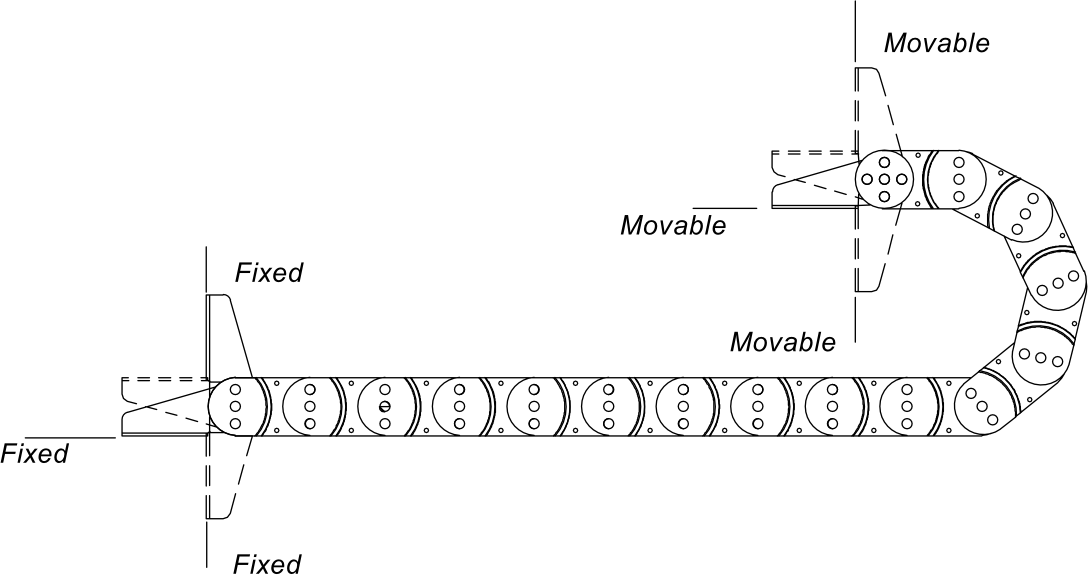

Steel End Connector Assembly

Connector 1
