CK35 A/K/Y Series

Technical Data

Material:
PA6 + 30% Fibre Glass

Speed:
8 m/sec

Temperature:
-30°C to +130°C

Application Areas

Gantry Robot
Machining Center
Textile & Welding Machines
Woodwork & Fabric Machines

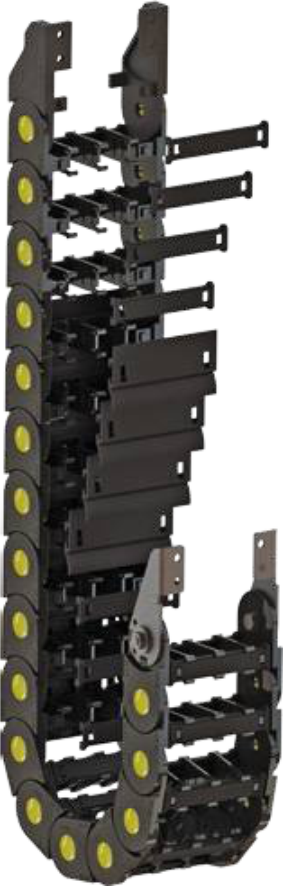

Image Representation

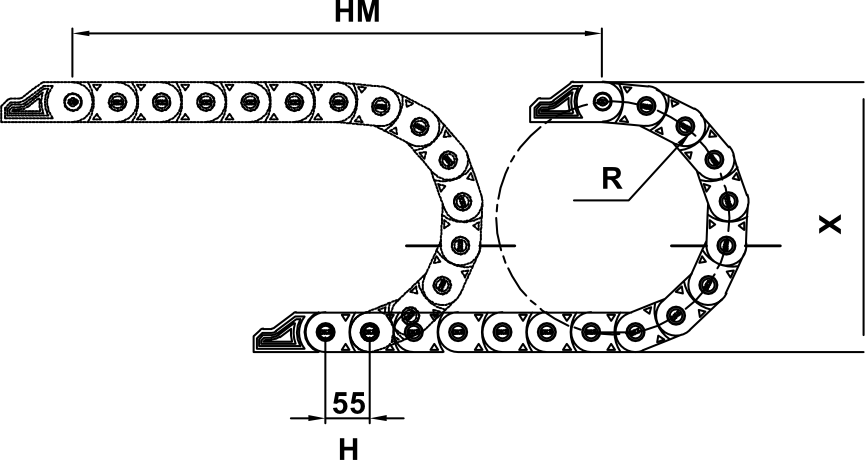

Formula References

L — Calculation of the chain length
HM — Travel Distance
Y — Mounting Height
X — Radius Length
H — Pitch

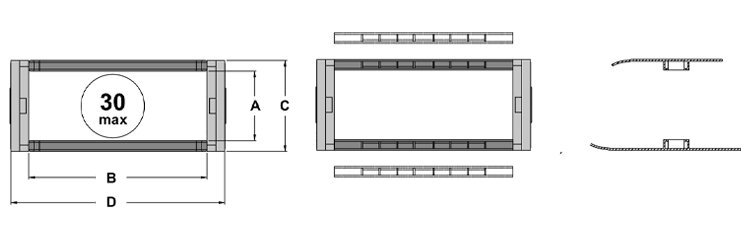

Openable From Inside

CK35

Inner height

Open series

060

Inner width

R100

Bending radius

L = HM / 2 + Y

X = R × 2 + C

Y = R × π

	A Inner Height (mm)	B Inner Width (mm)	C Outer Height (mm)	D Outer Width (mm)	R Bending Radius	W Weight Kg/Mt
CK35 A 040 R...	35	40	52	64	50,75,100,150	1.296
CK35 A 050 R...		50		74		1.332
CK35 A 060 R...		60		84		1.368
CK35 A 080 R...		80		104		1.440
CK35 A 100 R...		100		124		1.512
CK35 A 120 R...		120		144		1.584
CK35 A 125 R...		125		149		1.620
CK35 A 175 R...		175		199		1.800

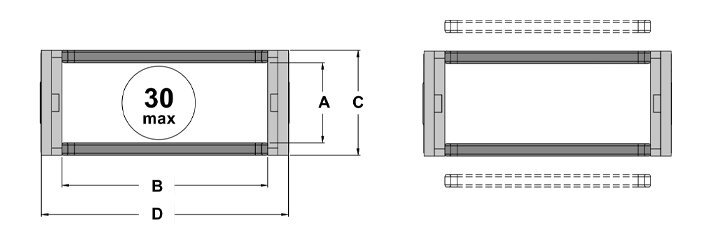

Openable From Inside and Outside

CK35

Inner height

Closed Series

060

Inner width

R100

Bending radius

L = HM / 2 + Y

X = R × 2 + C

Y = R × π

MODEL	A Inner Height (mm)	B Inner Width (mm)	C Outer Height (mm)	D Outer Width (mm)	R Bending Radius	W Weight Kg/Mt
CK35 K 040 R...	35	40	52	64	75,100,150	1.494
CK35 K 060 R...		60		84		1.656
CK35 K 080 R...		80		104		1.836
CK35 K 100 R...		100		124		1.998
CK35 K 125 R...		125		149		2.178

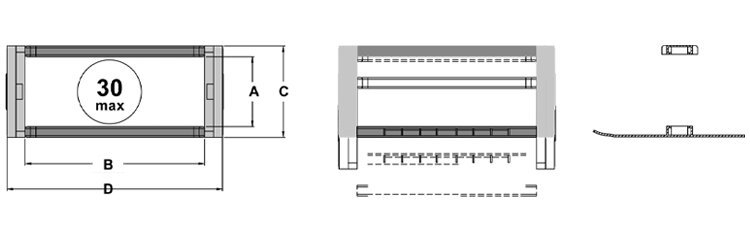

Semi-Closed

CK35

Inner height

Half-Covered

060

Inner width

R100

Bending radius

L = HM / 2 + Y

X = R × 2 + C

Y = R × π

MODEL	A Inner Height (mm)	B Inner Width (mm)	C Outer Height (mm)	D Outer Width (mm)	R Bending Radius	W Weight Kg/Mt
CK35 Y 040 R...	35	40	52	64	75,100,150	1.404
CK35 Y 060 R...		60		84		1.530
CK35 Y 080 R...		80		104		1.656
CK35 Y 100 R...		100		124		1.782
CK35 Y 125 R...		125		149		1.926

Bending Radius

	50	75	100	150
H(mm)	55
X(mm)	152	202	252	352
Y(mm)	157	236	314	471

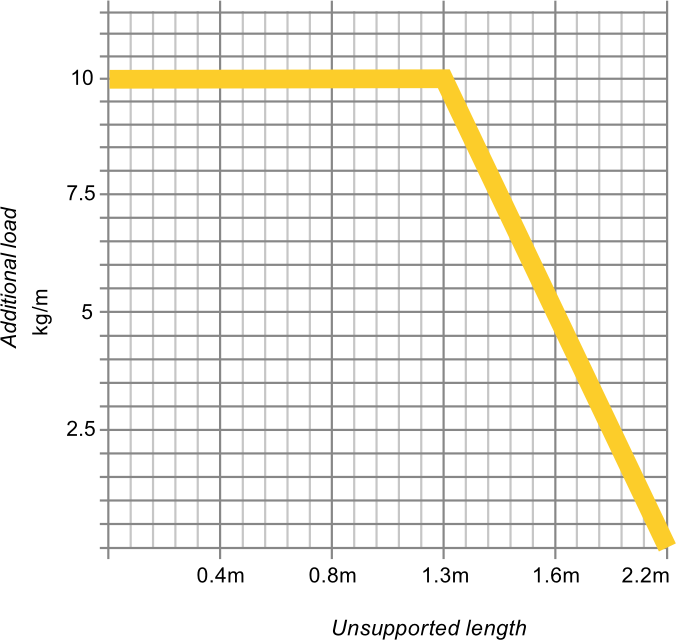

Load Diagram

End Connector Assembly

Polymer End Bracket Assembly

Steel End Bracket Assembly
