CS30 A / B / K Metal Drag Chain

CS30 A/B/K Series

Technical Data

Material:
 PA6 + 30% Fibre Glass

Speed:
 8 m/sec

Temperature:
 -30°C to +130°C

Application Areas

  • Gantry Robot
  • Machining Center
  • Textile & Welding Machines
  • Woodwork & Fabric Machines

Image Representation

Chain Example

Formula References

  • L — Calculation of the chain length
  • HM — Travel Distance
  • Y — Mounting Height
  • X — Radius Length
  • H — Pitch

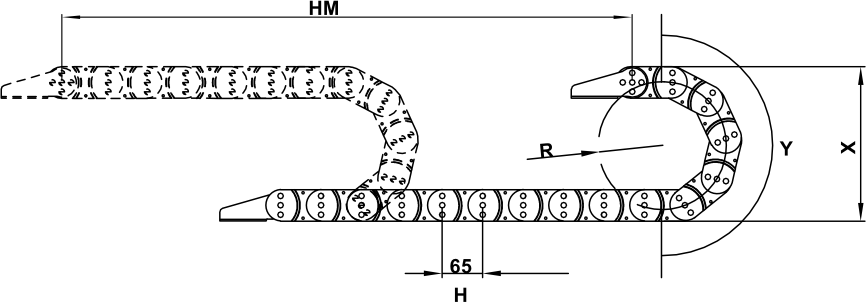

Chain Formula Diagram

Openable From Inside

CS30
Inner height
A
Open series
200
Inner width
R075
Bending radius
CS30 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
A

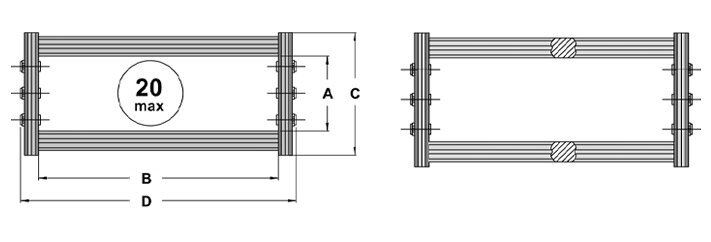

Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS30 A 30 50-500 50 66-516 75-150

Aluminium Special Designed Series for your Cables and Hose holes

CS30
Inner height
B
Special designed series
200
Inner width
R150
Bending radius
CS30 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS30 B 30 50-500 50 66-516 75-150

Openable From Inside and Outside

CS30
Inner height
K
Open series
200
Inner width
R150
Bending radius
CS30 Series Diagram
L = HM / 2 + Y
X = R × 2 + C
Y = R × π
MODEL A
Inner Height (mm)		 Bmin - Bmax
Inner Width (mm)		 C
Outer Height (mm)		 D
Outer Width (mm)		 W
Weight Kg/Mt
CS30 K 30 50-500 50 66-516 150

Technical Resources

CS30 Steel Catalogue

Technical dimensions, specifications and installation details.

View PDF Download

Bending Radius

75 150
H(mm) 65
X(mm) 215 365
Y(mm) 236 471

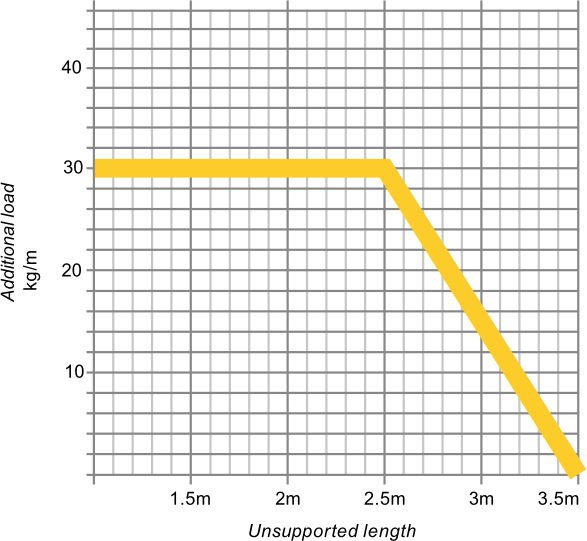

Load Diagram

Load Diagram

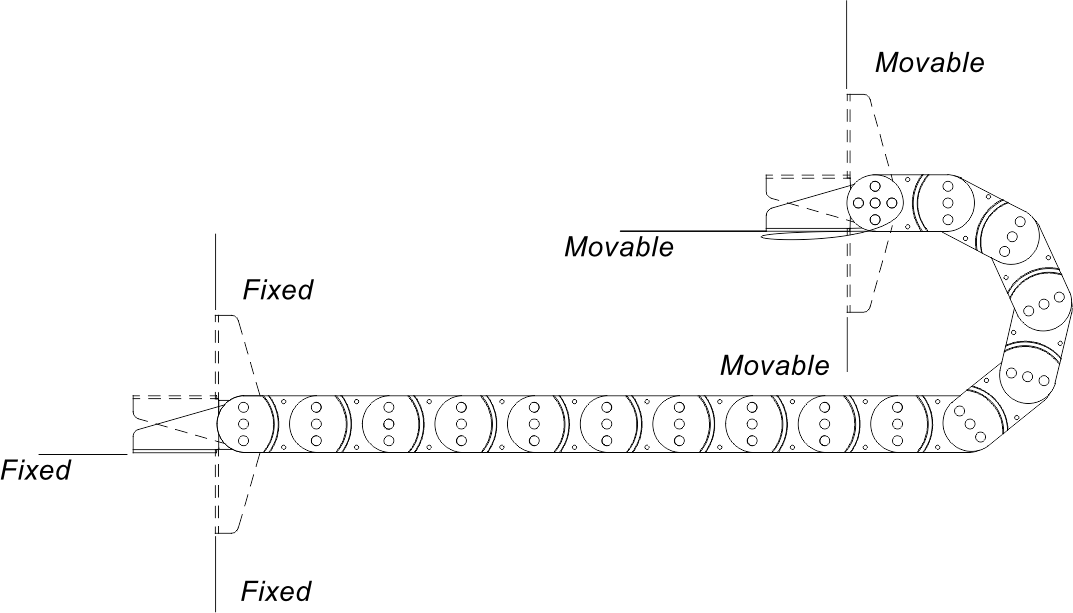

Steel End Connector Assembly

Connector 1
